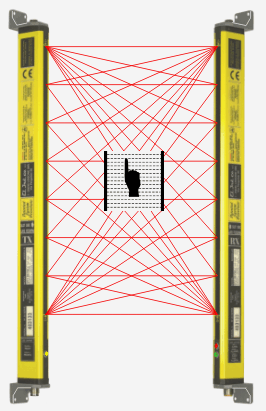

Finger protection : OPT3 SMC P018
- Active optoelectronic protection device against accident, for machines tools and for areas and dangerous industrial plants, of Type 2 upgrading to Type 4 through BOX-2/4 control unit.
- It complies with the directives 2006/42/CE – 2004/108/CE – 2006/95/CE
- Specific reference : CEI-EN 61496/1 - CEI-CLC/TS 61496/2
- EC Type examination issued by the European Notified Bodies
- Reduced mechanical dimensions 22x36mm of the extruded aluminium housing
- Fixing through orientable brackets (SMO)
- Optional sliding elastic supports on all the height (SUPPEL 70)
- Power supply 24Vdc
- Resolution 18 mm
- Protected Height (HP) from 144 mm to 1152 mm
- Range from HP a 6 meters (modello NR)
- Range from 6 a 16 meters (modello MR)
- Possibility of use with deflection mirrors in column leveling
- Safety Outputs : 2 optoinsulated static output switches 200mAdc/ac @ 40Vdc/ac max
- 2 signalling LEDs of the logic state of the command outputs
- Optional : Function SRS / EDM : Start-Restart selectable automatic or manual / External Device Monitoring
- Output connections through M12 prewired connectors - 5 poles TX - 8 poles RX
- Cable lenght 10 meters shielded and included in the supply
- MUTING function through BOX-MUT control unit
- Protection degree IP54 (on demand IP67 - IP69K)
- Delivery within 3 days from the order
