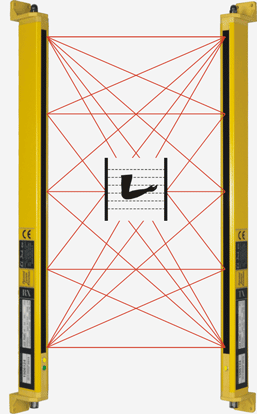

Arm protection: LC3 P080
- Active optoelectronic protection device against accident, for machines tools and for areas and dangerous industrial plants, of Type 3 upgrading to Type 4 through BOX-2/4 control unit.
- It complies with the directives 2006/42/CE – 2014/30/CE – 2014/35/CE
- Specific reference : CEI-EN 61496/1 - CEI-EN 61496/2
- EC Type examination issued by the European Notified Bodies
- Reduced mechanical dimensions 22x36mm of the extruded aluminium housing
- Fixing through orientable brackets (SMO)
- Optional sliding elastic supports on all the height (SEA)
- Power supply 24Vdc
- Resolution 80 mm
- Protected Height (HP) from 320 mm to 1920 mm
- Range from HP a 6 meters (modello NR)
- Range from 6 a 16 meters (modello MR)
- Range from 16 a 30 meters (modello HR)
- Possibility of use with deflection mirrors in column leveling
- Safety Outputs : 2 optoinsulated static output switches 300mAdc/ac @ 24Vdc/ac max
- 2 signalling LEDs of the logic state of the command outputs(red/green)
- Function EDM "External Device Monitoring" included and signaled by the yellow LED
- Optional : Function SRS "Start-Restart selectable automatic or manual"
- Output connections through M12 prewired connectors - 5 poles TX - 8 poles RX
- Cable lenght 10 meters shielded not included in the supply
- MUTING function through BOX-MUT control unit
- Protection degree IP54 (on demand IP67 - IP69K)
- Delivery within 3 days from the order
